| Front Side Bus |
|
| Target
Segment |
- High-end workstation,
server, and internet application
|
| Form
Factor |
- Extended ATX
- Size: 12" x 13"(W
x H)
|
| Chipset |
|
| Memory |
- Up
to 12 GB ECC registered DDR-200/266 memory in 6 DIMM
slots*
- Supports only registered
ECC memory. Non-ECC or unbuffered memories are not
supported.
- Two-way
interleaved memory banks provide outstanding memory
performance. (must use a pair of DIMMs for memory
to function)
|
| Onboard
Devices |
- Support U320 Zero-channel
RAID (Adaptec 2010S), card not included
- Dual
EIDE ports support Ultra DMA 100MB/s of Burst
data transfer rate, supports UDMA Mode 5,
PIO Mode 4 and ATA/100
- Onboard Adaptec AIC-7902
dual channel Ultra320 SCSI controller
- Intel
82545EM Gigabit Ethernet controller
- AC'97
audio CODEC high quality 6-channel sound
- 1
Floppy port
- 2
Fast UART 16550 serial ports
- 1
ECP/EEP parallel port
- Up
to 6 Hi-Speed USB 2.0 ports (get a 480 megabits per
second transfer rate)
- wireless
Infrared port
- PS/2
keyboard and mouse ports
|
| PC
Health Monitoring |
- Monitoring the voltages
of the CPU core and the status of system power supply
(+1.8V, +3.3V, +5V, ±12V) (Supero Doctor II)
- CPU/chassis temperature
monitoring
- CPU fan auto-off in
sleep mode
- CPU overheat LED header
(front panel)
- chassis intrusion
detection (through LDCM)
- Support for system
management software (LDCM)
|
| Standard
Retail Package |

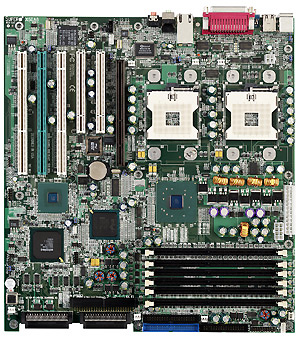

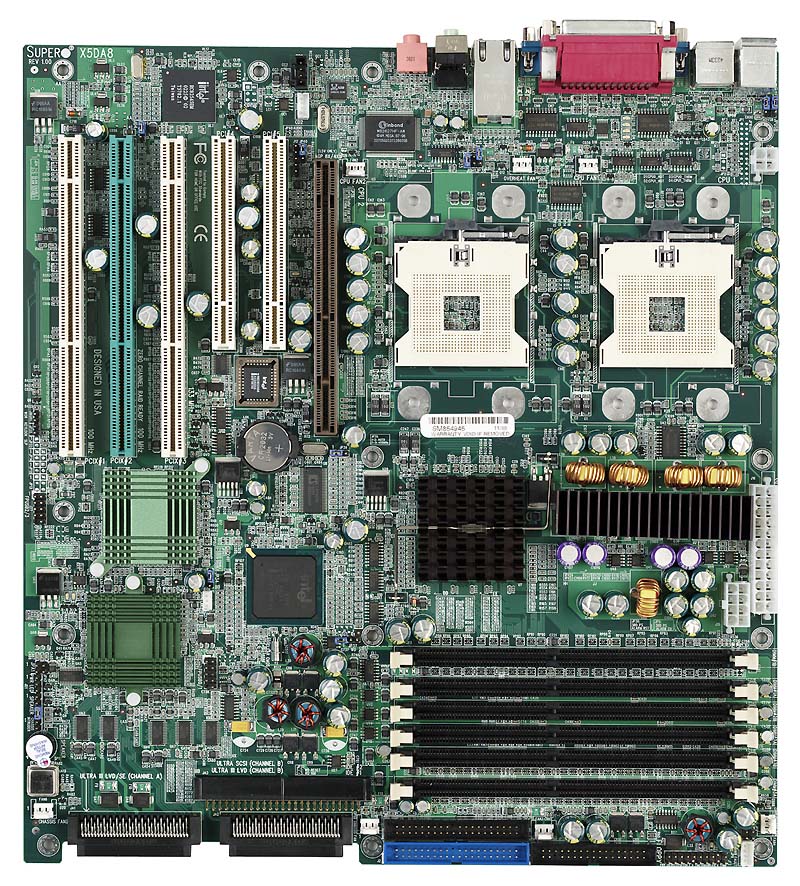

- One SUPER X5DA8 mainboard
- CPU heatsink retention
SKT-095-604 and clips
- 1 three-ended 80-wire/40-pin
IDE UDMA/100 ribbon cable for high speed UDMA IDE
devices
- 1 floppy ribbon cable
- PT2 I/O shield with
single LAN
- U320 SCSI cable
034 and manual with Disk 018a
- Hi-speed
USB 2.0 4 ports Cable 041
- Two silent Fan-050
with heatsink
-
One
BIOS/drivers CD
|
|
| サポートCPU |
Dual Intel
Xeon processors up to 3.06GHz with 512K L2 cache |
| I/O
Expansion |
- 1
8xAGP Pro 1.5V
- 1 64-bit 133MHz PCI-X
- 2 64-bit 100MHz PCI-X
- 2 32-bit 33MHz PCI
|
| Special
Features |
- Suspend to RAM
(STR): All tasks are stored in RAM and can be
resumed within 10 seconds from the minimum power consuming
suspend mode.
- Wake-on-LAN
allows for remote network management and configuration
of the PC, even in off-hours when the PC is turned
off. This reduces the complexity of managing a network.
- Onboard 4-phase switching
power regulator supports CPU core voltages from 1.3-1.5
volts
- 4 tachometer
fan connectors (for CPU, chassis, and thermal control
fans)
- Keyboard wake-up from
Soft-off
- CPU frequency settings
- changeable in BIOS setup
- Connector for LED
overheat indicator
- Overheat backup fan
connector for CPU protection
- Watchdog support
|
| BIOS Features |
- Supports ACPI (Advanced
Configuration and Power Interface) and APM (Advanced
Power Management)
- Slow blinking LED
for Sleep State indicator
- Main switch override
mechanism. Power-up mode control upon recovery from
AC power loss
- PC Health Monitoring
protects your system from problems even before they
occur.
- DMI support
- RTC (Real-Time Clock)
wakeup
- External modem remote
ring-on when system is in Soft-Off state
- BIOS rescue hot keys
for rescuing BIOS chip from flash failure
- Hardware BIOS virus
protection
- 4Mb Flash ROM
|
| Other Features |
- Internal/external
modem ring-on
- One WOL (Wake-On-LAN)
connector
- One chassis intrusion
connector
- Chipkill support
- CPU thermal trip
support
|
| Chassis
Compatibility |
- Extended ATX Chassis
- Chassis Guide
- To
ensure system stability, a 400W (minimum) ATX12V power
supply (besides the 24 pins, both 4-pin and 8-pin
+12v power connector) is required.
- Please
check Support
for more details
|
|
