| Target Segment |
|
| Form
Factor |
- ATX
- Size: 12" x 10" (W x
H)
|
| Processor Support |
- Dual Intelｮ
Xeon・processors up to 3.06GHz with 512K L2 cache
(with or without 1MB integrated L3 cache)
|
| Chipset |
|
| Front Side Bus |
|
| Memory |
- Up to 8 GB ECC registered
DDR-200/266 memory in 4 DIMM slots*
- Supports only registered ECC
memory. Non-ECC or unbuffered memories are not supported.
- dual
channel memory banks provide outstanding memory
performance. (must use a pair of DIMMs for memory to
function)
(
Memory recommendation list)
|
| I/O Expansion |
|
| Onboard
Devices |
- SATA
controller supporting 2 SATA connectors for 2 drives
(RAID 0,1)
- Dual
EIDE ports support Ultra DMA 100MB/s of Burst data
transfer rate, supports UDMA Mode 5,
PIO Mode 4 and ATA/100
- Intel
82540 Gigabit Ethernet controller
-
Intel 82550 10/100 Ethernet controller
- IPMI
ver. 1.5 option (card not included)
- ATI
Rage XL 8MB PCI graphic controller
- 1
Floppy
- 2
Fast UART 16550 serial ports
- Up
to 5 USB ports
- PS/2
keyboard and mouse ports
- Parallel
port header (parallel cable required for parallel
port)
|
|
| Management |
- SuperO Doctor
software (optional)
- IPMI
ver. 1.5 option (card not included)
- DMI support
|
| BIOS Features |
- Internal/external modem
remote ring-on when system is in Soft-Off state
- BIOS rescue
hot keys for rescuing BIOS chip from flash
failure
- Hardware BIOS
virus protection
- AMI 4Mb Flash
ROM
|
| Other Features |
- ACPI/APM power management
- Internal/external modem ring-on
- Control of power-on mode for recovery from AC
power loss
- One WOL (Wake-On-LAN) connector
- Chipkill support
- CPU thermal trip
support
|
| Chassis
Compatibility |
- ATX
Chassis
- Chassis Guide
- To
ensure system stability, a 350W (minimum) ATX12V
power supply (8-pin +12v and [24 or 20-pin] power connector) is
required.
- Please
check Support for more details
|
| PC
Health Monitoring |
- Monitoring the voltages of the CPU core and the
status of system power supply (+5V, +3.3V, ｱ 12V)
- 5 3-pin fan header
with tachometer monitoring on 2 fans
- Overheat LED
indications
- Chassis intrusion
header
- Support for
system management software
|
| Standard
Retail Package |

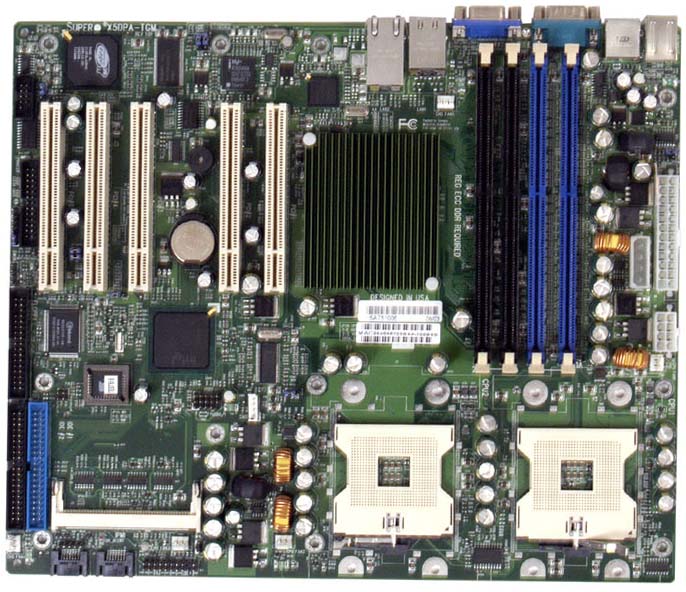

- One SUPER X5DPA-TGM mainboard
- One Motherboard
Manual
- Two Xeon heatsink
retention and clips
- Two Xeon mounting
plates
- One 9-pin serial
port cable
- One ATX Floppy Cable
- One Head USB Cable
w/Bracket
- Two 2ft. Serial ATA
Cable
- One Driver Disk
- One I/O Shield
|
|
