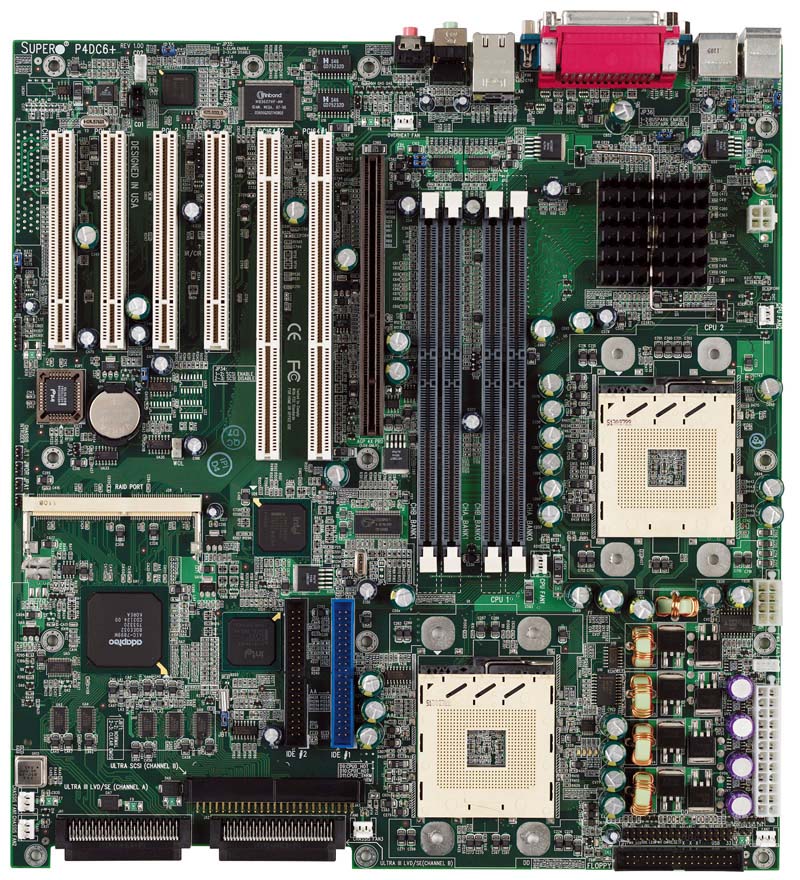

| Motherboard |
|
| CPU |
- Dual Intelｮ
Xeon・Processors of 1.50 to 2.4 GHz
|
| Memory |
- Dual
Channel 600/800 MHz RDRAM with a Transfer Rate up to 3.2 GB/s
- Four 184-pin RIMMs for
600/800 MHz RDRAM up to 2 GB
- Two
Rambus Inline Memory Modules of the same memory size
are the minimum requirements.
(Memory recommendation list)
|
| Front Side BUS |
|
| Chipset |
|
| I/O Expansion |
- 2 64-bit, 66MHz PCI (low
profile)
- 4 32-bit, 33MHz PCI (low
profile)
- 1 4xAGP pro 1.5V (low profile)
|
| Onboard I/O Devices |
-
Adaptec
Zero-channel SCSI RAID controller support
is an option
- Dual
EIDE ports support Ultra DMA 100MB/s of Burst data transfer
rate, supports UDMA Mode 5, PIO
Mode 4 and ATAPI
- ATI
Rage XL 8MB low-profile PCI graphic card
- AC97'
Audio
- Onboard Adaptec AIC-7899W
(7902 future option) dual channel Ultra160 (320) SCSI
controller
- Intelｮ
82559 LAN controller
- 2
Fast UART 16550 serial ports
- 1
ECP/EEP parallel port
- 1
Infrared header
- 2
USB ports
- PS/2
keyboard and mouse ports
|
|

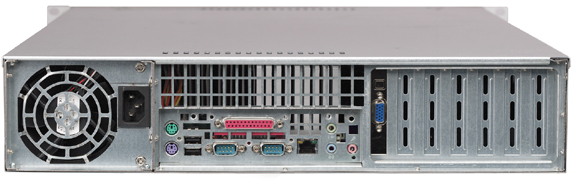

| Chassis |
|
| Form
Factor |
|
| Power
Supply |
- 400W power supply (PWS-0027)
- Auto-switching 100/240 AC
power
|
| SCA
Subsystem |
- 6 Hot-swap Ultra160 SCA
3.5" SCSI drive bays (for one-inch high, 80-pin SCA
SCSI drives)
- SCA backplane provides
power, bus termination
|
| Cooling
Subsystem |
|
| External
Drive Bays |
- 1 3.5" 1.44MB Floppy drive
- 1 Slim CD-ROM
- 1 5.25" Drive bay
|
| Other
Features |
- ACPI/APM power management
- Internal/external modem
ring-on
- Control of power-on mode for
recovery from AC power loss
- One WOL (Wake-On-LAN)
connector
- One chassis intrusion
connector
|
| PC
Health Monitoring |
- 5 Onboard voltage monitors
for CPU
- 4 Fan status
- Environmental temperature
monitor and control
- Chassis and CPU overheat
alarm, LED indication and control
- System resource alert
- Supermicro System Management
utility
|
| Dimensions |
- Width: 425 mm.
- Height: 88 mm.
- Depth: 652 mm.
- Weight: 54 lb.
|
| BIOS |
- 4Mb Award Flash ROM
- BIOS rescue recovery feature
- Hardware BIOS virus
protection
- Console redirection
- PXE headless support
|
|
|
|
